YANG ML-60A
All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

 MACHINE SPEC
 Make: YANG
 Model #: ML-60A
 Country of Origin: TAIWAN

Equipped With:
LM Ways Design

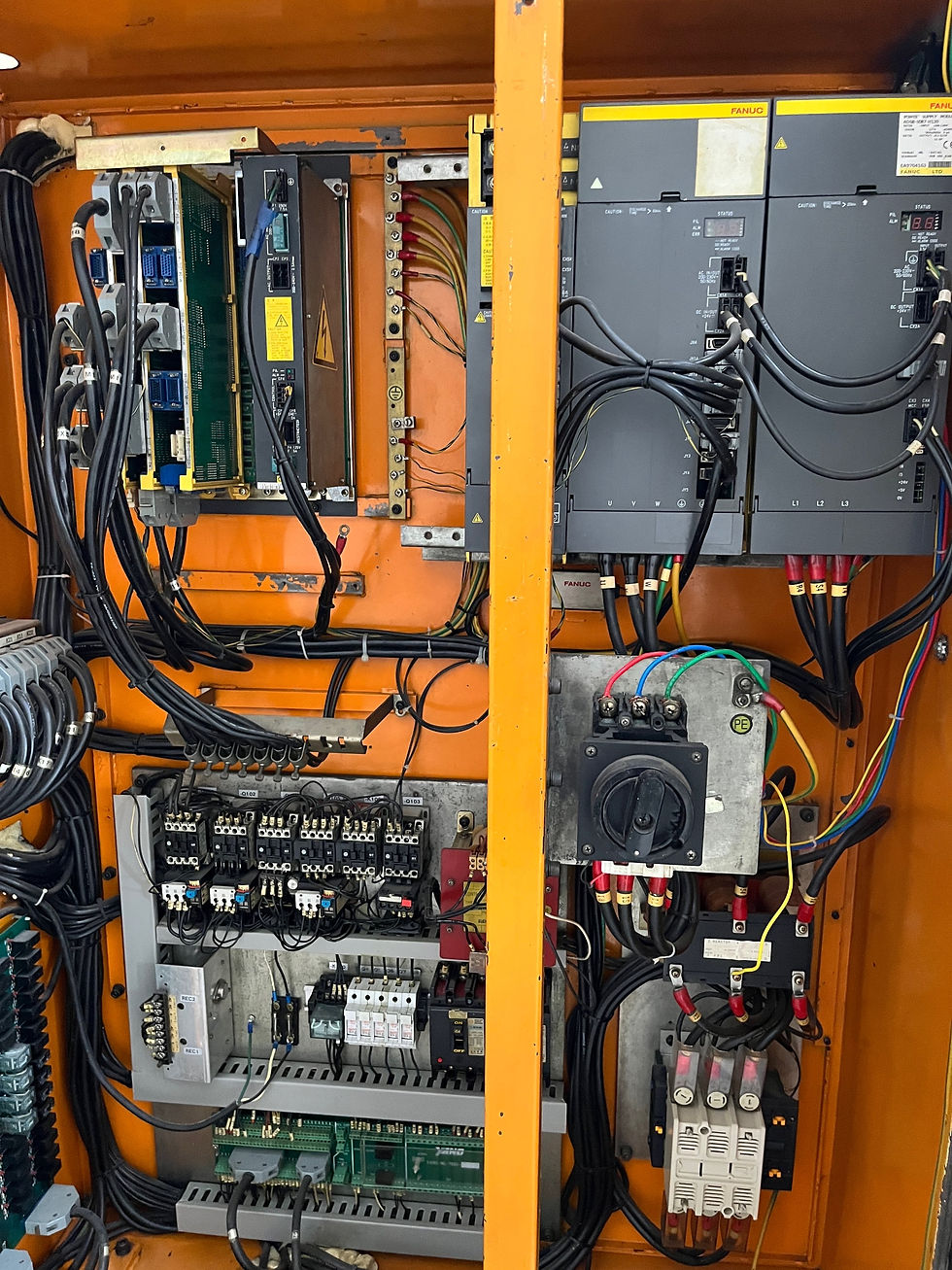

FANUC 0TC CNC Control with Alpha Servo drives
15" Kitagawa Hydraulic Chuck
Hydraulic Programmable Tailstock
Turbo Chip Conveyor
Coolant System.
Comes with Books and Parameters Backup.

Specifications:
 Max Turning Diameter: 620 mm
 Max Turning Length: 1100 mm
 Max Bar Capacity: 115 mm
 Swing Over Cross Slide: 720 mm
 Swing Over Bed: 720 mm
 Distance Between Centers: 1270 mm
 X Axis Travel: 385 mm
 Z Axis Travel: 1100 mm
Rapid Traverse : 20,000 mm/min
Spindle Nose:  A2-11
Spindle Bore: 135 mm
Spindle Speed: 4~2000rpm
Spindle Motor: 37kVA
Turret: 12 Stations Full hydralic
Tailstock Taper: MT-5

General:
OVERALL DIMENSIONS: 3840mm x 2126mm
Power Requirement:45  kVA
Weight : 12.500 kgs Approx.
