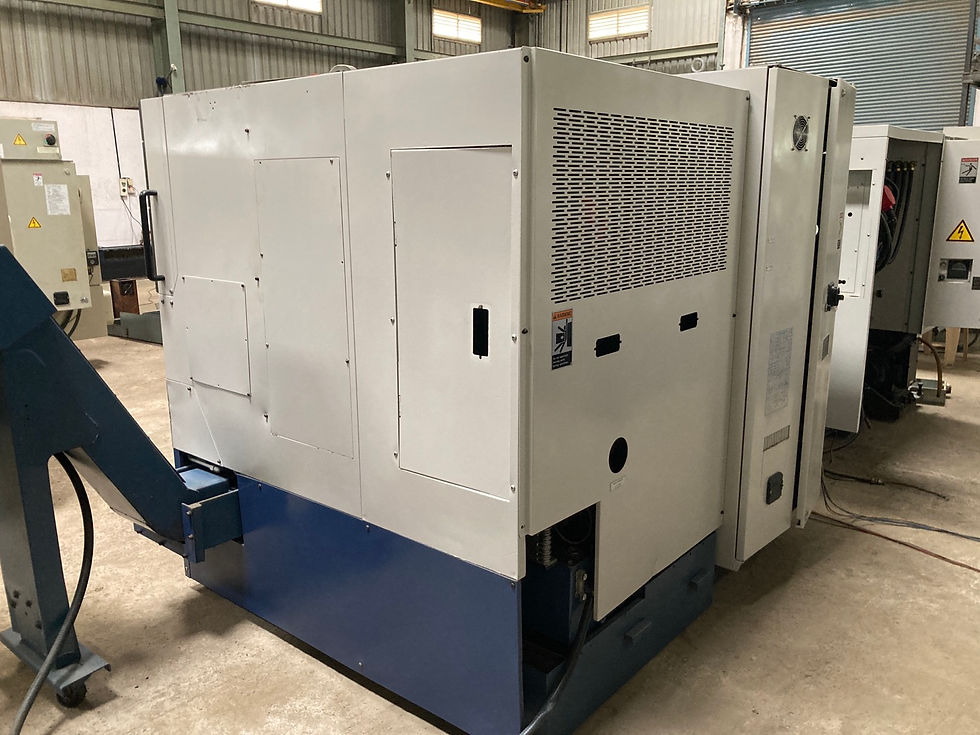

MORI SEIKI SL-250B

MORI SEIKI SL-250B

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: MORI SEIKI

 Model #: SL-250B/500

 Serial #:

 Country of Origin: Japan

 Condition: Very Good



Equipped With:

  • Box Ways Design
  • MSC-501 FANUC 18ITb CNC Control

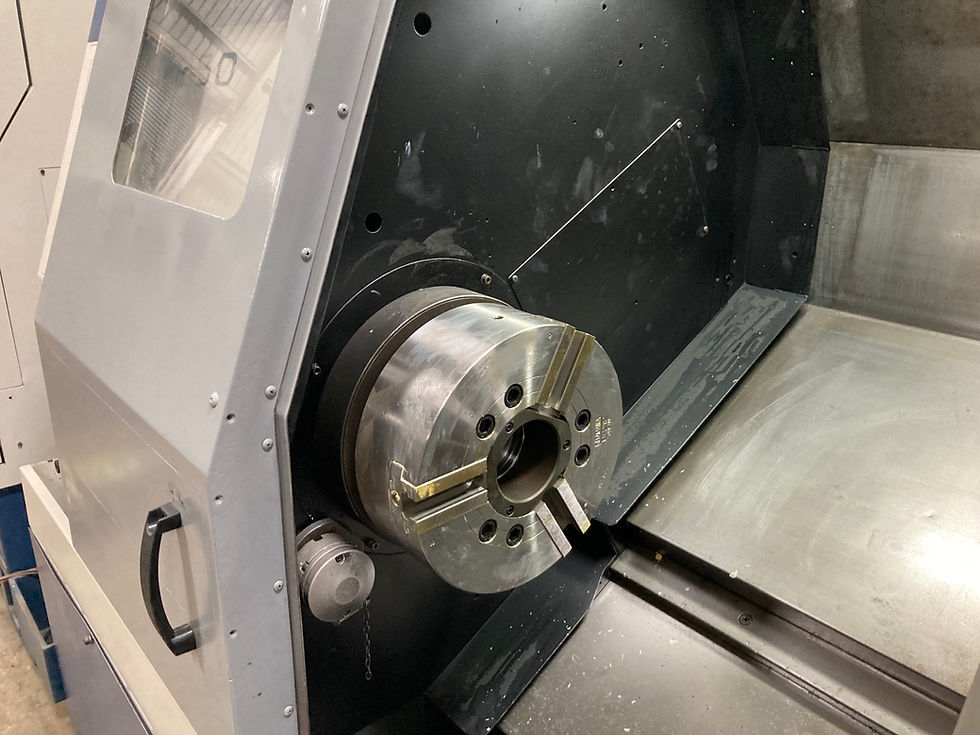

  • BRAND NEW 12" KITAGAWA Hydraulic Chuck
  • Hydraulic Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

 Max Turning Diameter:  395mm

 Max Turning Length: 560mm

 Max Bar Capacity: 73 mm

 Swing Over Cross Slide: 530mm

 Swing Over Bed: 680mm

 Distance Between Centers: 600mm

 X Axis Travel: 235mm

 Z Axis Travel: 520 mm

 Rapid Traverse : 24 m/min

 Spindle Nose:  A2-8

 Spindle Speed: 3,500 rpm

 Spindle Motor: 15/18.5 kVA ( intigrated spindle )

Turret Capacity: 12 Stations high speed servo hydraulic

Turret Index Time: 0.1 Second

Tailstock Taper: MT-4



General:

Power Requirement: 35 kVA

OVERALL DIMENSIONS: 2400 x 1800 x 1900 mm

Weight : 4500 kgs Approx.
