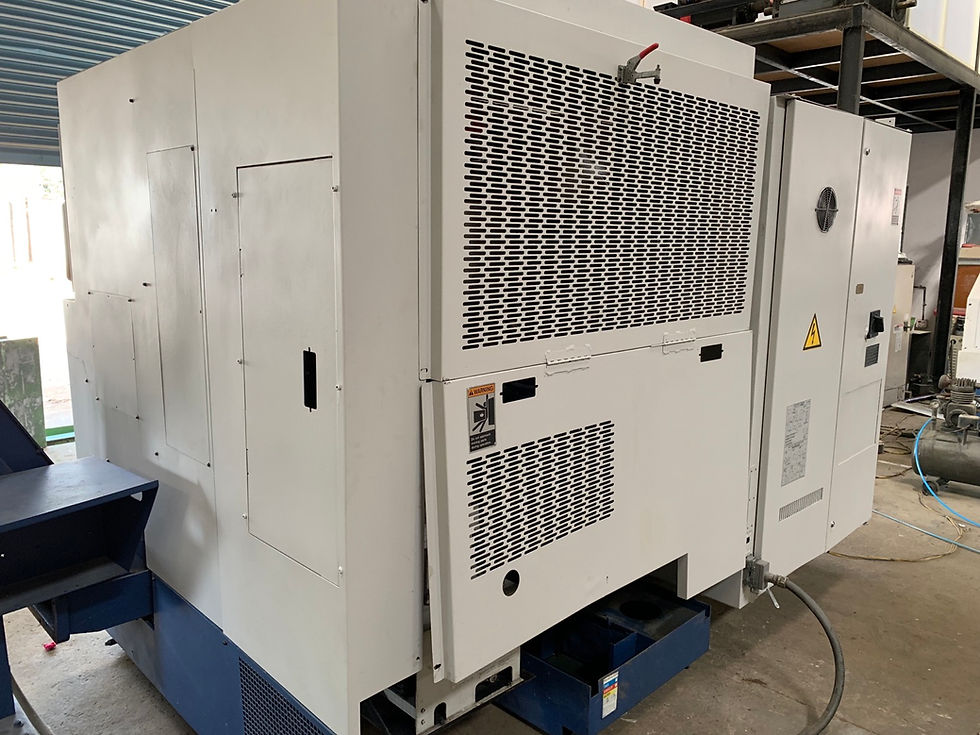

MORI SEKI SL-300AMC

MORI SEKI SL-300AMC

All specifications are approximations, and are subject to verification.

“On Our Floor now Fully powered is in Great working condition. Comes with manuals, Tool holders.



MACHINE SPEC



Make: MORI SEIKI

Model #: SL-300AMC

Serial #:

Country of Origin: Japan

Condition: Very Good



Equipped With:



  • Box Ways Design
  • CNC Control FANUC 18TC
  • Hydraulic Chuck
  • Hydraulic Programmable Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Comes with Books, Chip Conveyor, 1 LIVE Tool Holders, and Parameters Backup.
  • INTIGRATED SPINDLE



Specifications:

Full c axis 0.001' indexing or simultaneous 3 axis machining

Max Turning Diameter: 420mm

Max Turning Length: 720mm

Max Bar Capacity: 73.5mm

Swing Over Cross Slide: 713mm

Swing Over Bed: 713mm

Distance Between Centers: 800mm

Spindle Nose: A2-8

Spindle Speed: 10-3500 rpm

Spindle Motor: 18.5/22 kVA

Turret Capacity: 12 Stations high speed servo hydraulic 12 station live holders

Turret Index Time: 0.3 Second

Tailstock Taper: MT-5



General:

Power Requirement: 40 kVA

Weight : 6,800 kg Approx.
