All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

 MACHINE SPEC

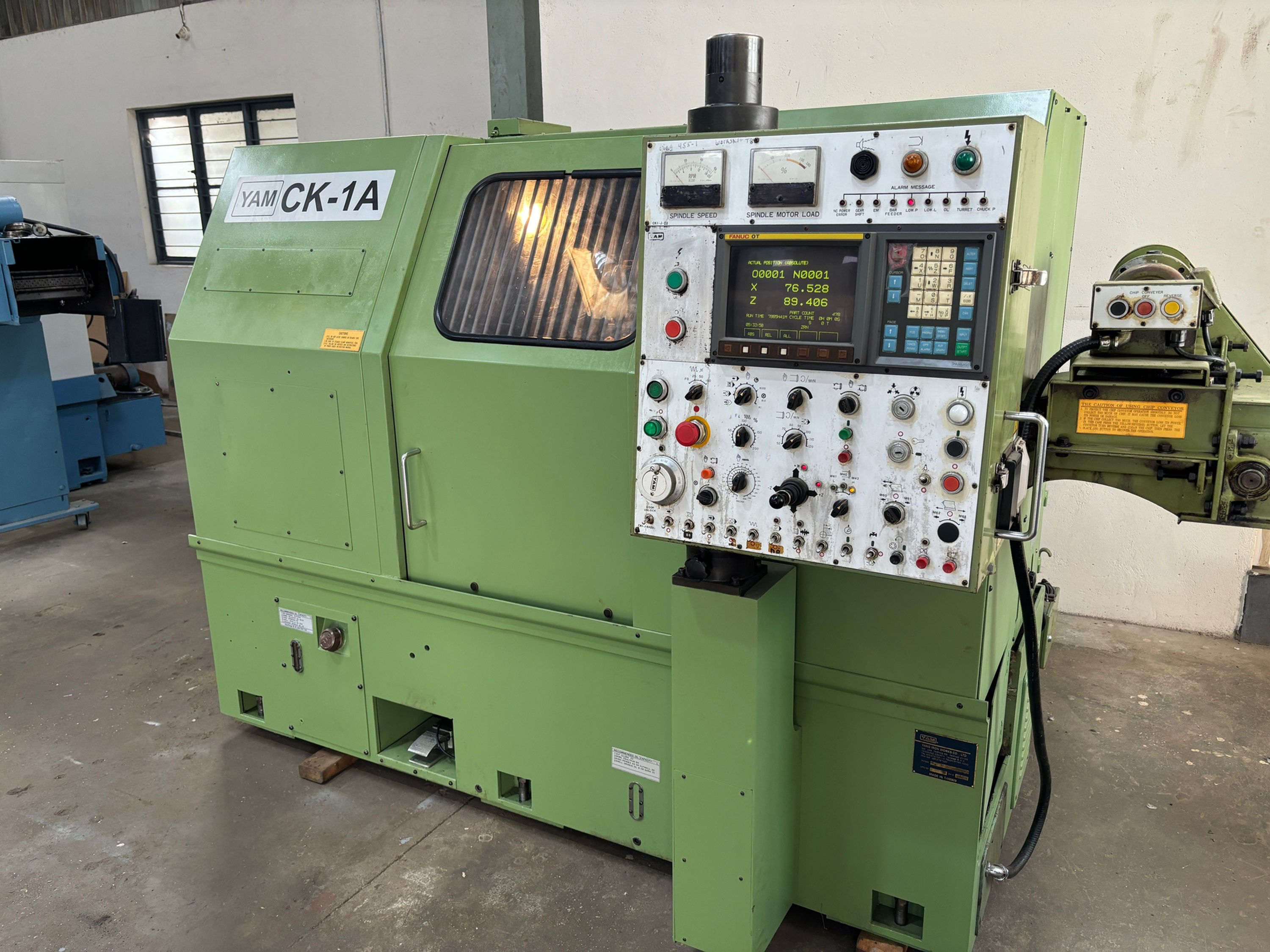

 Make: YAM
 Model #: CK-1A
 Country of Origin: TAIWAN

Equipped With:
Box Ways Design
FANUC 0T CNC Control
Hydraulic Chuck
8" 200mm Hydraulic Programmable Tailstock
Turbo Chip Conveyor
Coolant System.

Specifications:
 Max Turning Diameter: 190 mm
 Max Turning Length: 280 mm
 Max Bar Capacity: 40 mm
 Swing Over Bed: 460 mm
 Distance Between Centers: 430 mm
 X Axis Travel: 123 mm
 Z Axis Travel: 300 mm
Spindle Nose:  A2-5
Spindle Bore: 45 mm
Spindle Speed: 10~4500 rpm
Spindle Motor: 5.5/7 kVA
Turret Capacity:  12 Stations
Tailstock : yes

General:
OVERALL DIMENSIONS:
with chip conveyor mm 2906x1693x1670
without chip conveyor mm 2415x1693x1670
Weight : 2,700kgs Approx.
