OKUMA HOWA ACT-20

OKUMA HOWA ACT-20

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: OKUMA & HOWA

 Model #: ACT-20

 Serial #:

 Country of Origin: Japan

 Condition: Very Good



Equipped With:

  • Box Ways Design

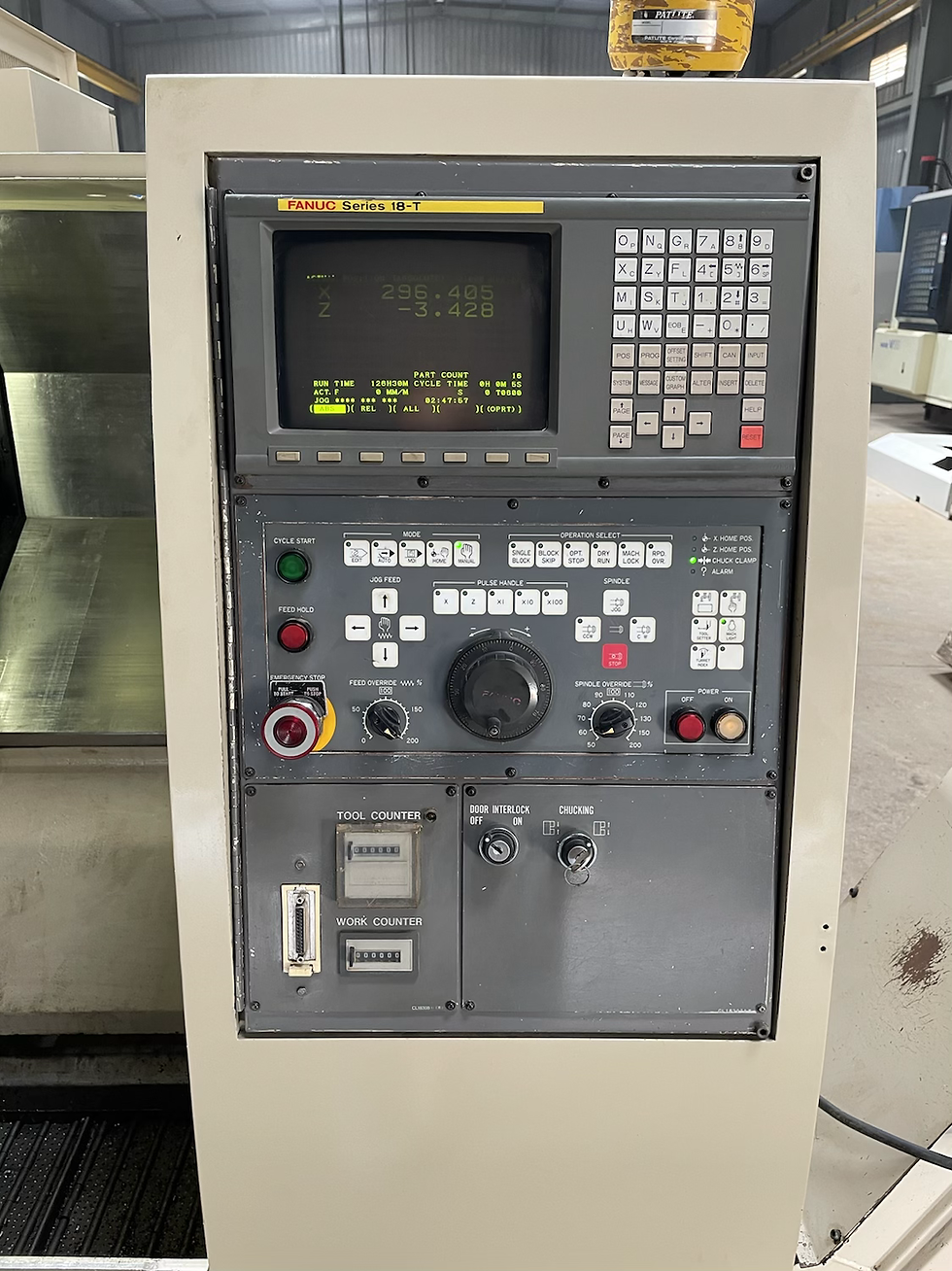

  • FANUC 18T CNC Control
  • Hydraulic Chuck
  • Hydraulic Programmable Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

 Max Turning Diameter: 310mm

 Max Turning Length: 500mm

 Max Bar Capacity: 40mm

 Distance Between Centers: 510 mm

Rapid Traverse : 28 m/min

Spindle Nose:  A2-6

Spindle Bore: 50.8mm

Spindle Speed: 0 - 4000rpm

Spindle Motor: 7.5/11 kVA

Turret Capacity: 12 Stations servo hydraulic

Tailstock Taper: MT-4



General:

Power Requirement: 25  kVA

Weight : 3,700 kgs Approx.
