All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

 MACHINE SPEC

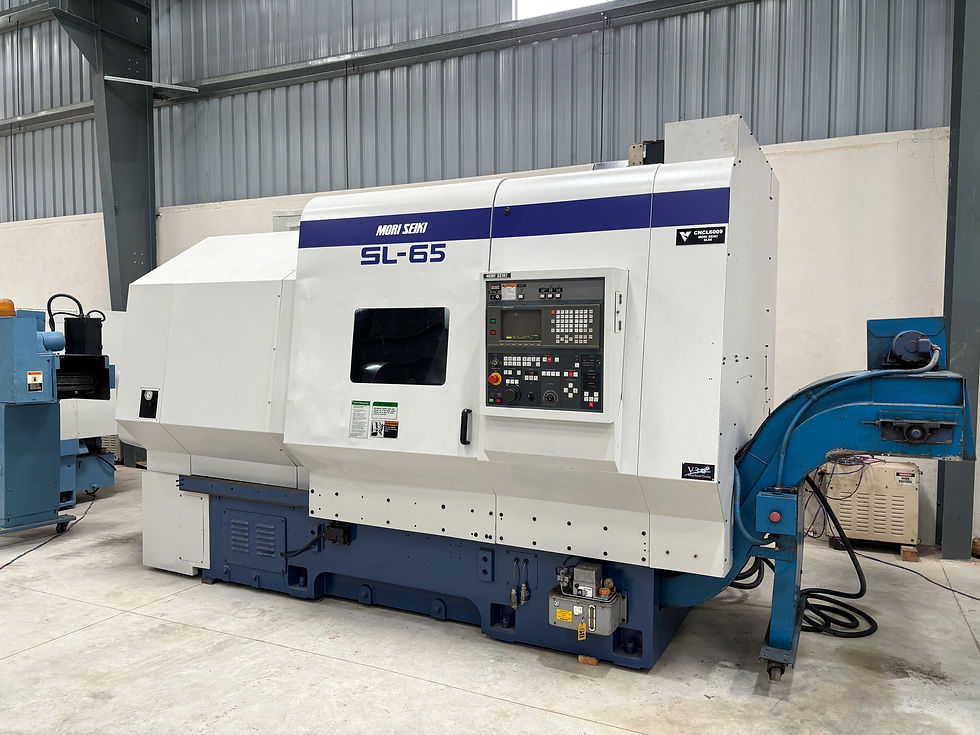

 Make: MORI SEIKI
 Model #: SL-65B
 Country of Origin: Japan

Equipped With:
Box Ways Design
CNC Control FANUC 18TC
Hydraulic Chuck
Hydraulic Programmable Tailstock
Turbo Chip Conveyor
Coolant System.
Comes with Books and Parameters Backup.

Specifications:
 Max Turning Diameter: 660 mm
 Max Turning Length: 860mm
 Swing Over Cross Slide: 560mm
 Swing Over Bed: 890mm
 Distance Between Centers:900mm
 X Axis Travel:350mm
 Z Axis Travel: 860mm
Spindle Nose:  A2-11
Spindle Bore: 168mm
Max Bar Capacity: 120 mm
Spindle Speed: 4 - 1010 rpm
Spindle Motor: 30/37 kVA
Turret Capacity: 12 Stations
Tailstock Taper: MT-5

General:
Overall Dimensions: 160″ x 80″ x 98″ High
Overall Dimensions: 200″ x 80″ x 98″ High with Chip Conveyor
Weight : 20,000 lbs Approx.
