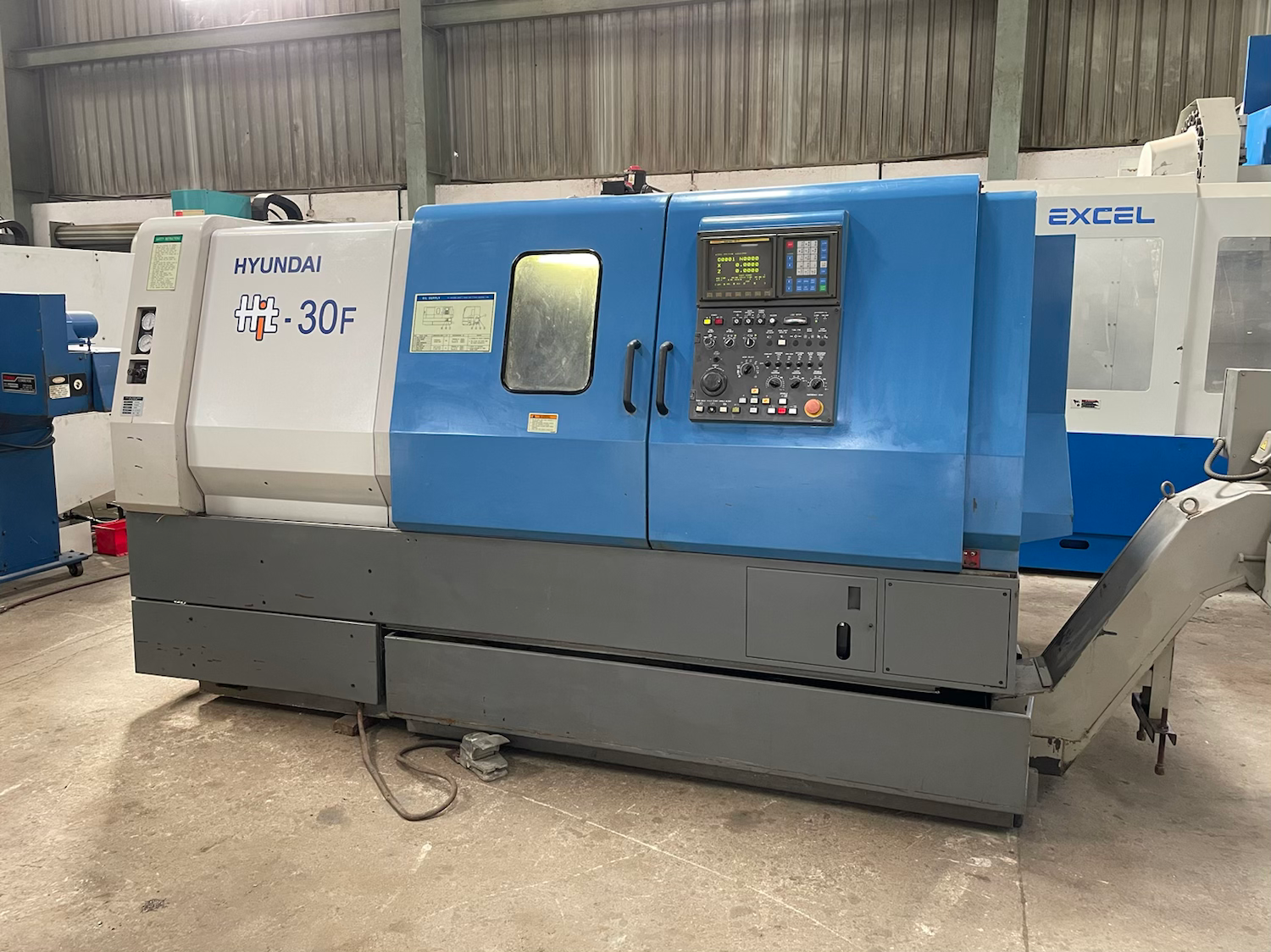

HYUNDAI HIT-30F

HYUNDAI HIT-30F

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: HYUNDIA

 Model #: HIT-30F

 Serial #:

 Country of Origin: SOUTH KOREA

 Condition: Very Good



Equipped With:

  • LM Ways Design
  • CNC Control FANUC 0TC
  • 12" ( 315 mm ) NEW KITAGAWA Hydraulic Chuck
  • Hydraulic Programmable Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

 Max Turning Diameter: 395 mm

 Max Turning Length: 1010 mm

 Max Bar Capacity: 70 mm

 Max Swing : 510 mm

 Distance Between Centers: 1016mm

 X Axis Travel: 200 mm

 Z Axis Travel:  1020 mm

Rapid Traverse : x,z 18,24 m/min

Spindle Nose:  A2-8

Spindle Bore: 80 mm

Spindle Speed: 30-3000 rpm

Spindle Motor: 18.5 kVA power UP Series

Turret Capacity: 16 Stations hydraulic Turret

Tailstock Taper: MT-4



General:

Weight : 5300 kgs Approx.
