EXCEL PMC-14T24

EXCEL PMC-14T24

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



MACHINE SPEC

Make: EXCEL

Model #: PMC-14T24

Serial #:

Country of Origin: Singapore

Condition: Very Good



Equipped With:

  • Box Ways Design for Z , X and Y - LM

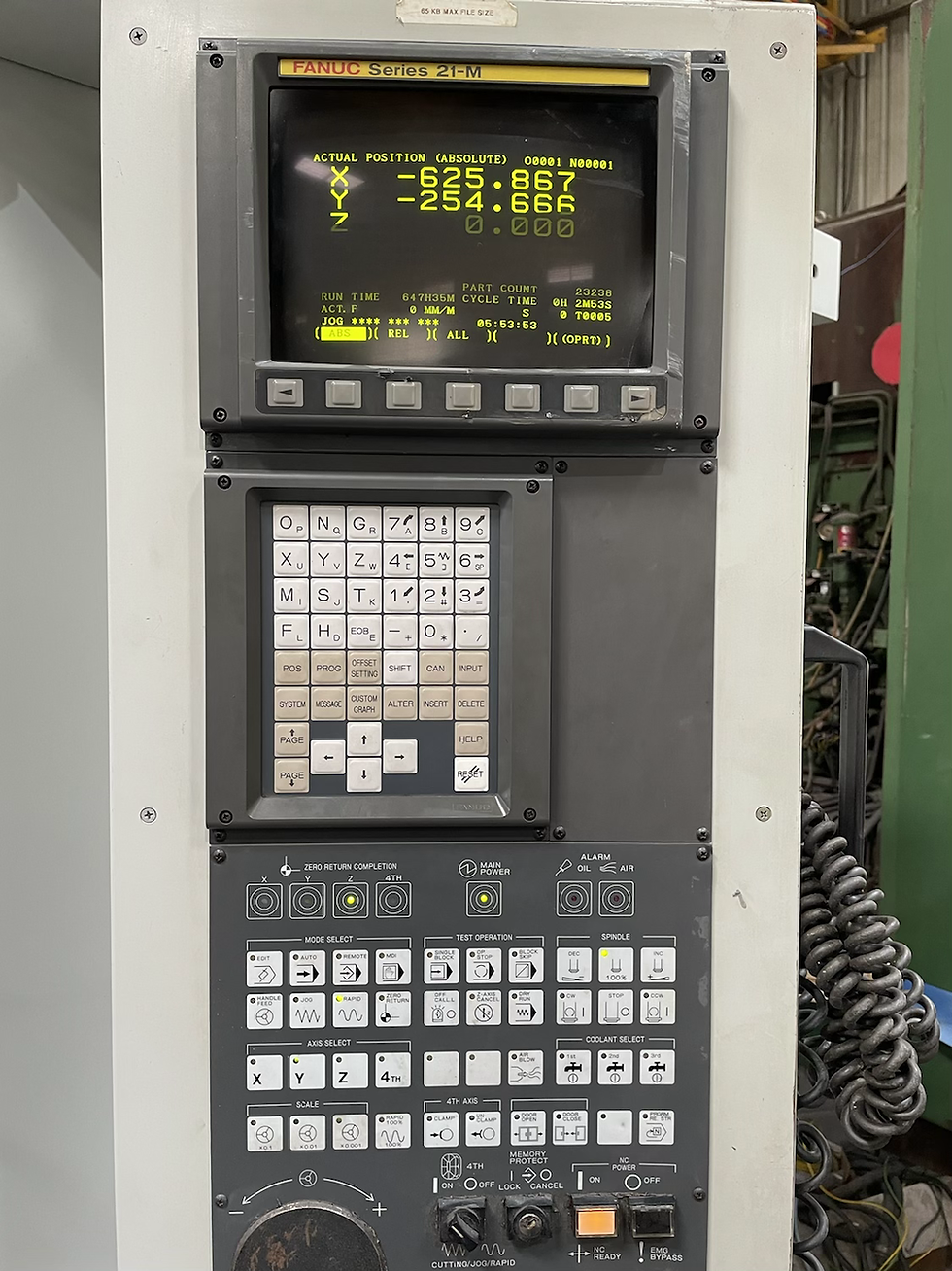

  • CNC Control FANUC 21M
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books, Parameters Backup



Specifications:

Table Size: 1500 X 750 mm

Travel x,y,z :1420 X 760 X 610mm

Rapid Traverse : 24 m/min

Spindle taper: 40

Spindle Speed: 8000 rpm ( integrated spindle )

Spindle Motor:  18.5/22 kVA

ATC: 24 tool ARM  type high speed servo ATC

Max Load on Table 1500kg



General:

Weight : 9,000 kgs Approx.
