ECOCA SJ-35

ECOCA SJ-35

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: ECOCA

 Model #: SJ-35

 Serial #:

 Country of Origin: Taiwan

 Condition: Very Good



Equipped With:

  • Box Ways Design

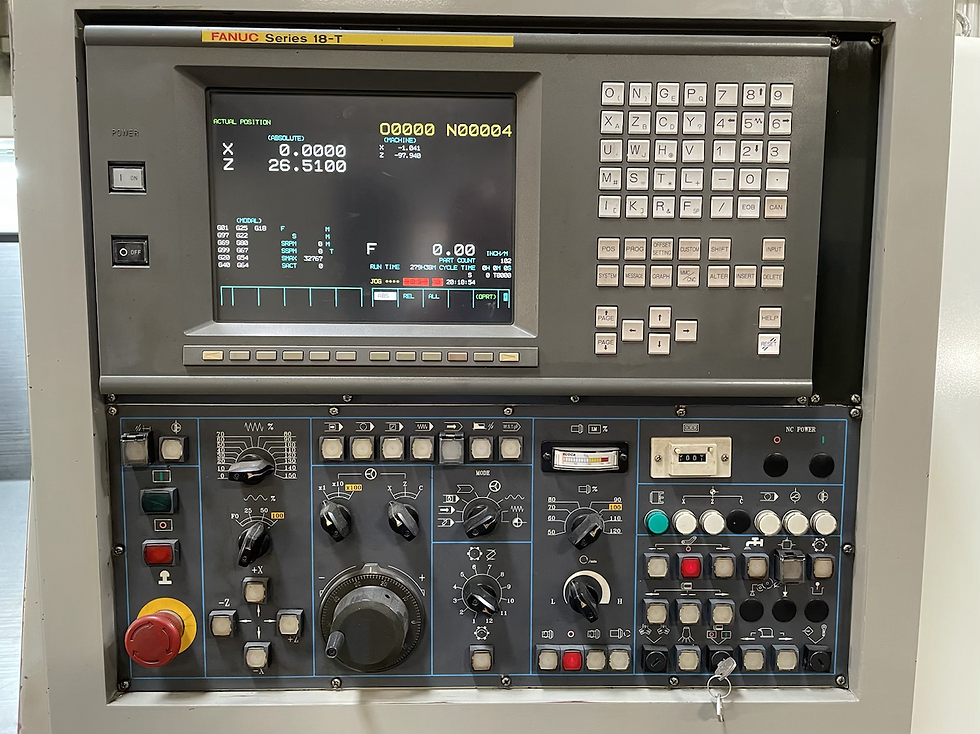

  • Fanuc 18TC CNC Control with 12" LCD
  • 315 mm Hydraulic Chuck
  • Hydraulic Programmable Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

 Max Turning Diameter:  400mm

 Max Turning Length: 700mm

 Max Bar Capacity: mm

 Swing Over Cross Slide : 450mm

 Swing Over Bed : 640mm

 Distance Between Centers: 780mm

 X Axis Travel: 235mm

 Z Axis Travel: 750mm

Rapid Traverse : 20m/min

Spindle Nose:  A2-8

Spindle Bore: 90mm

Spindle Speed: 3,000 rpm

Spindle Motor:  15/18.5 kVA

Turret Capacity:  12 Stations Hydraulic Turret utilizing a Japanese made Curvic Coupling

Tailstock Taper: MT-5



General:

OVERALL DIMENSIONS: 4820 x 2000mm

Power Requirement: 40 kVA

Weight : 6,500 kgs Approx.
