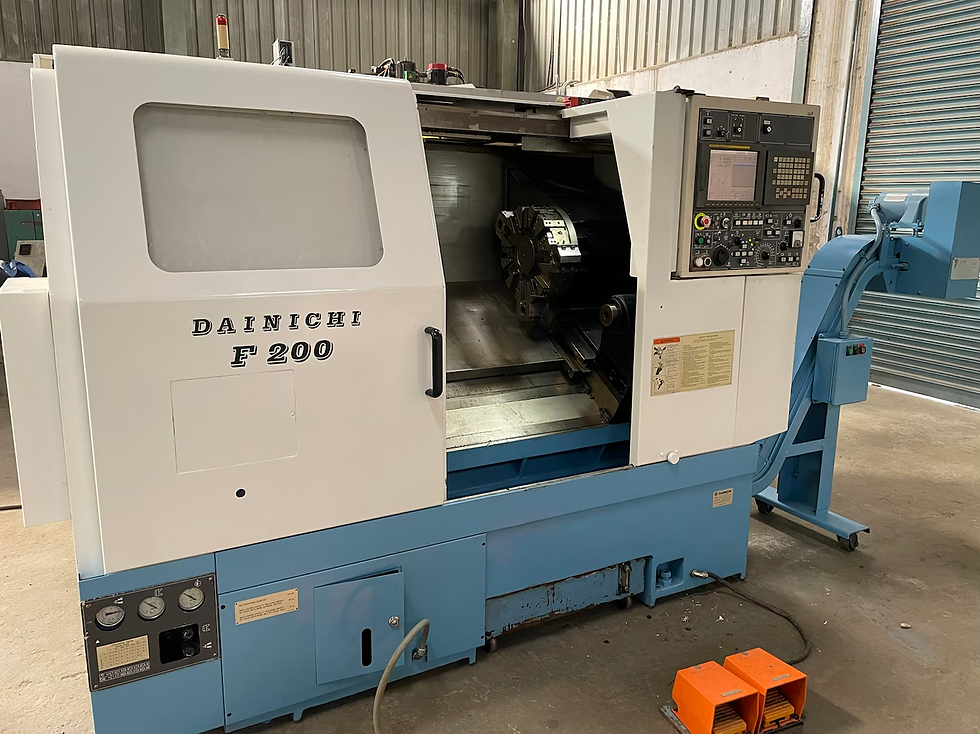

DAINICHI F-200

DAINICHI F-200

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: DAINICHI

 Model #: F-200

 Serial #:

 Country of Origin: Japan

 Condition: Very Good



Equipped With:

  • Box Ways Design
  • FANUC 21iT CNC Control
  • 10" Hydraulic Chuck
  • Hydraulic Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

Max Turning Diameter:  360 mm

Max Turning Length: 600 mm

Max Bar Capacity:  45 mm

Swing Over Cross Slide:mm

Distance Between Centers: 650mm

Rapid Traverse : 24,000 mm/min

Spindle Nose:  A2-6

Spindle Bore: mm

Spindle Speed: 4000 rpm

Spindle Motor: 7.5/11kVA

Turret Capacity: 12 servo hydralic Stations

Turret Index Time: 1 Second

Tailstock Taper: MT-3



General:



Power Requirement: 25 kVA

Weight : 3800 kgs Approx.
