All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

 MACHINE SPEC

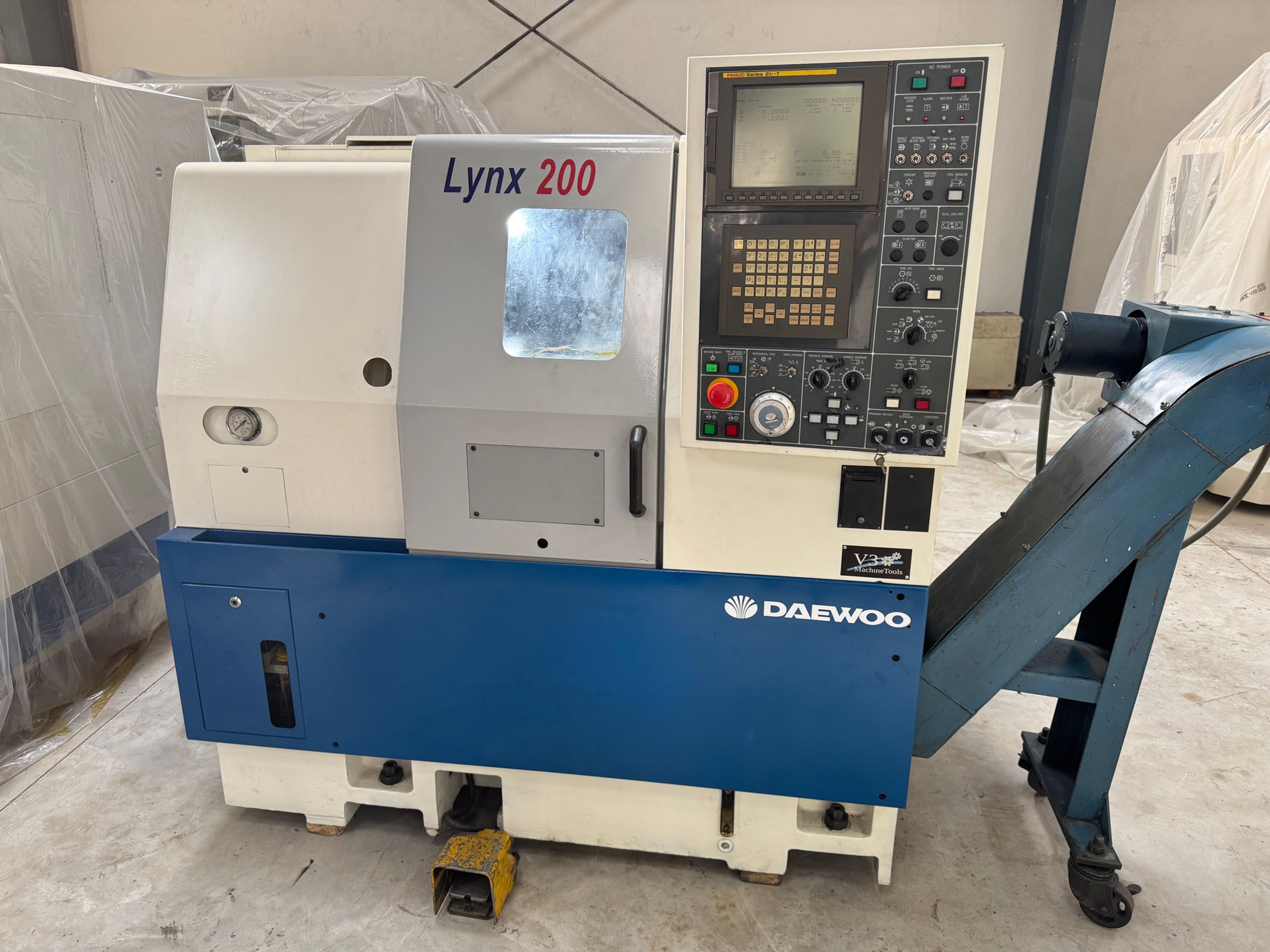

 Make: DAEWOO
 Model #: LYNX 200
 Country of Origin: KOREA

Equipped With:
Box Ways Design
CNC Control FANUC 21iT
8" Hydraulic Chuck
Turbo Chip Conveyor
Coolant System.
Comes with Books and Parameters Backup.

Specifications:
 Max Turning Diameter: 280mm
 Max Turning Length: 400mm
 Swing Over Cross Slide: 350 mm
 Swing Over Bed: 460 mm
 X Axis Travel: 160mm
 Z Axis Travel: 530 mm
Rapid Traverse : 35,000 m/min
Spindle Nose:  A2-5
Spindle Speed: 4500 rpm
Spindle Motor: 7.5/11 kVA
Turret Capacity: 10 Stations Hydralic
No tail stock

General:
OVERALL DIMENSIONS: 1620 × 1590 × 1550
Power Requirement: 20 kVA
Weight : 3,170kgs Approx.
