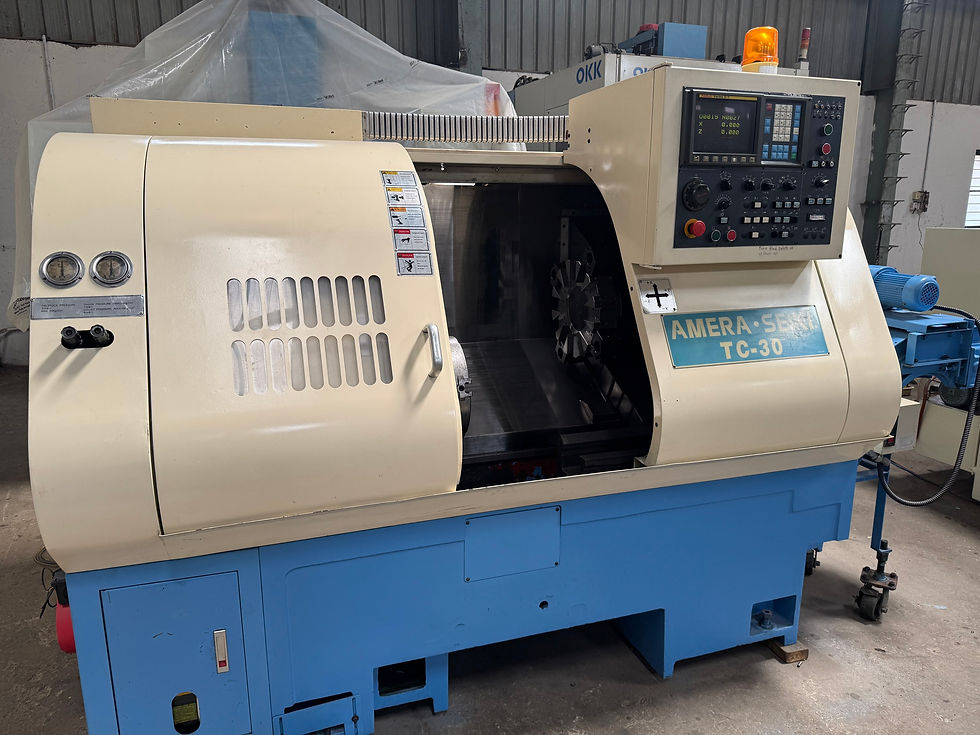

AMERA SEIKI TC-30

AMERA SEIKI TC-30

All specifications are approximations, and are subject to verification.

“On Our Floor now, Can be inspected under Power.



 MACHINE SPEC

 Make: AMERA SEIKI TC-30

 Model #: TC-30

 Country of Origin: TAIWAN



Equipped With:

  • LM Ways Design
  • CNC Control FANUC 0TC  Alpha Serise drives
  • 12" Hydraulic Chuck
  • Hydraulic  Tailstock
  • Turbo Chip Conveyor
  • Coolant System.
  • Comes with Books and Parameters Backup.



Specifications:

 Max Turning Diameter: 340mm

 Max Turning Length: 550 mm

Distance Between Centers: 600mm

Spindle Nose:  A2-8

Spindle Bore: 76 mm

Spindle Speed: 10 ~ 3500rpm

Turret Capacity: 12 Stations

Tailstock Taper: MT-3



General:

Power Requirement: 25kVA

Weight : 3700 kgs Approx.
