All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

 MACHINE SPEC

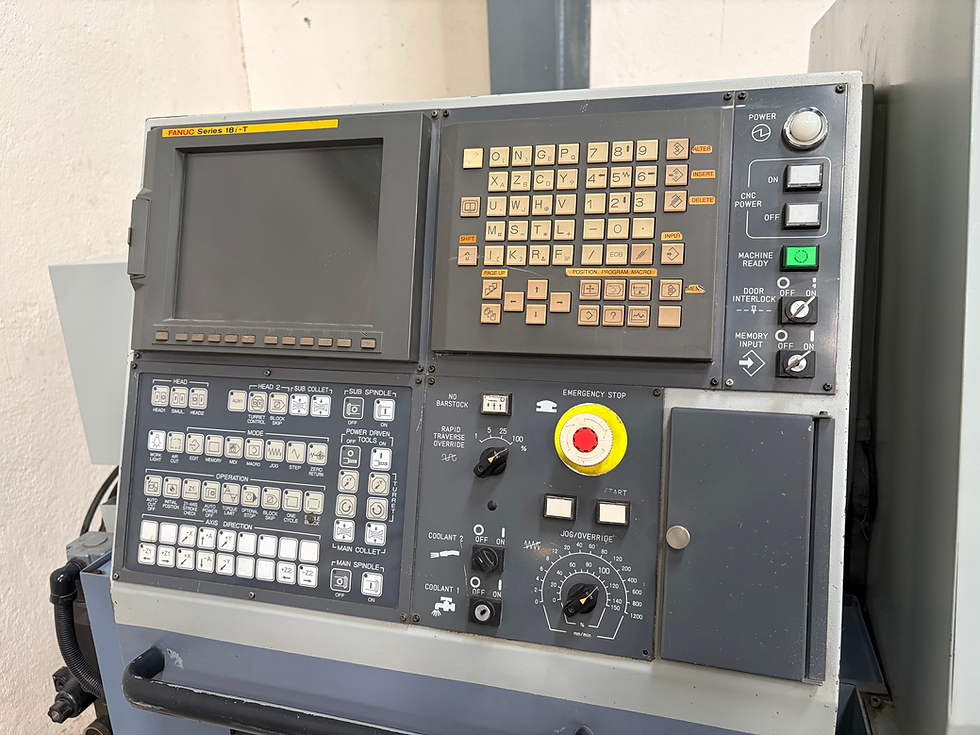

 Make: STAR
 Model #:  SV-32J
 Country of Origin: Japan

Specification
Max. Machining Diameter - Ø32mm (1-1/4in)
Max. Headstock Stroke - 310mm (11-13/16in)
Tool Post Configuration - GANG TYPE Tool + power-driven att.
TURRET TYPE - 8 face
Tool (Number of Tools)
GANG TYPE - 4 tools
TURRET TYPE - 1 tool/1 face
Tool (Tool Shank)
GANG TYPE - 16mm x 95 ~ 135mm
TURRET TYPE - 16mm x 65 ~ 70mm
MAX. DRILLING CAPABILITY - ø19mm (3/4 in)
MAX. TAPPING CAPABILITY - M12 x P1.75
MAX. DIE CUTTING CAPABILITY - M12 x P1.75
Power-Driven Att.
NUMBER OF TOOLS
Gang Type -  3 tools
Turret Type Max. 2 tools/1 face
MAX. DRILLING CAPABILITY
Gang Type - Ø8mm (5/16in)
Turret Type - Ø8mm (5/16in)
MAX. TAPPING CAPABILITY
Gang Type M6 x P1.0
Turret Type M8 x P1.25
MAX. MILLING CAPABILITY - ø10mm (25/64 in)
MAX. SLOTTING CAPABILITY - 1.5mm (W) x 4mm (D)

Main Spindle
Main Spindle Min. Indexing Degree C-axis 0.001
Main Spindle Speed Max. 7,000 min-1
Main Spindle Motor 5.5kw (continuous) / 7.5kw (30 min.)
Power-Driven Att. Spindle Speed
GANG TYPE Max. 6,000min-1
TURRET TYPE Max. 5,900min-1
Power-Driven Att. Drive Motor
GANG TYPE - 0.5kw
TURRET TYPE - 0.9kw

Back Spindle
Max. Chucking Diameter - ø32mm (1-1/4in)
Max. Length For Front Ejection - Ø150mm (5-7/8in)
Max. Part Projection Length - 75mm (2-15/64in)
Sub-Spindle Min. Indexing Degree - 0.001°
Sub-Spindle Speed - Max. 7,000min-1
Sub-Spindle Motor 2.2 kw / 3.7 kw

General
Coolant Tank Capacity - 170ℓ
Dimension (W x D x H) - 2,715 x 1,245 x 1,680mm
Weight - 3,200kg
Power Consumption - 7.0KVA
