All specifications are approximations, and are subject to verification.
“On Our Floor now, Can be inspected under Power.

MACHINE SPEC

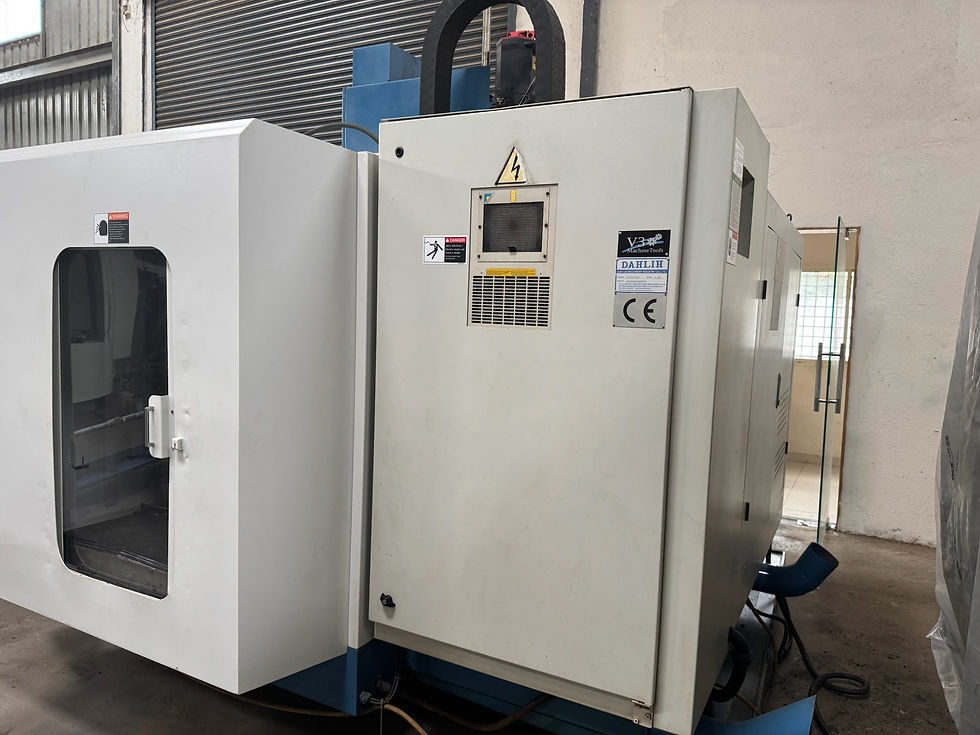

Make: DAHLIH
Model #: MCV-1020B
Country of Origin: TAIWAN

Equipped With:
Box ways for Z axis & LM Ways FOR x,y axis
DIE AND MOLD SERIES
CNC Control FANUC 21iMB
Turbo Chip Hager
Coolant System.
Comes with Books, Parameters Backup.

Specifications:
Table Size: 1250X650 mm
Travel X ,Y,Z : 1020X560X610mm
Rapid Traverse : 30,000 mm/min
Spindle taper: 40
Spindle Speed: 10,000 rpm
Spindle Motor: 7.5/11kVA
NO ATC

General:
Weight : 4,400kgs Approx.
Dimensions: 3118 x 2640MM
